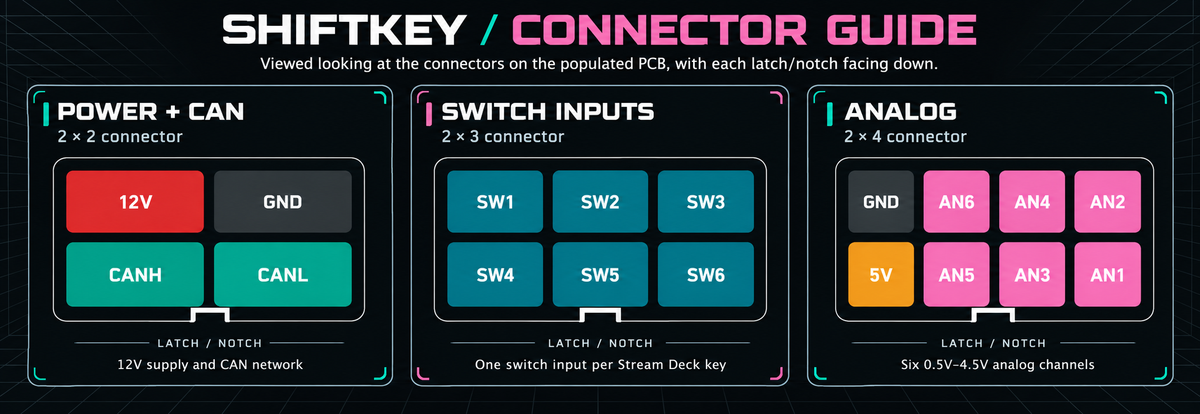

Connector pinouts are shown above from the populated PCB side, with each latch or notch facing down. The analog channels in this guide are labeled 0.5–4.5V.

A full installation wiring diagram is coming soon.

12V outputs: 1 amp maximum per output, for relay coils or compatible ECU digital inputs. Do not power lights or accessories directly.

Basic: 12V relay control.
Pro: 12V relay control and 0–5V analog signals.
Ultimate: 12V relay control, 0–5V analog signals, and CANbus.

The 0–5V circuits use an ECU's 5V reference and sensor return. Specific ECU compatibility, CANbus protocols, and configuration requirements will be listed here. Contact us to confirm your combination before installation.

Guides for mounting, connecting the display and control box, and configuring your Shiftkey.

For interior cabin use only. The unit is not intended for water exposure or extreme dust conditions.

Step-by-step instructions for connecting to Shiftkey over Wi-Fi, opening its setup interface in your web browser, uploading images, selecting icons, and adjusting icon brightness.

98 icons in pink and teal, available as PNG images and editable SVG files. Choose your format below and unzip the download before use.

The browser upload and setup guide is coming soon.
